Hope - E4 / RX4+ Caliper Align

Caliper Alignment Tool

This tool is used to align the caliper with the disc.

Instructions:
Install the spacer instead of the pads and secure with the pad pin. Put over the disc and alternatively tighten the M6 caliper screws.

Note:

• Pistons need to be all to be pushed into their bores.

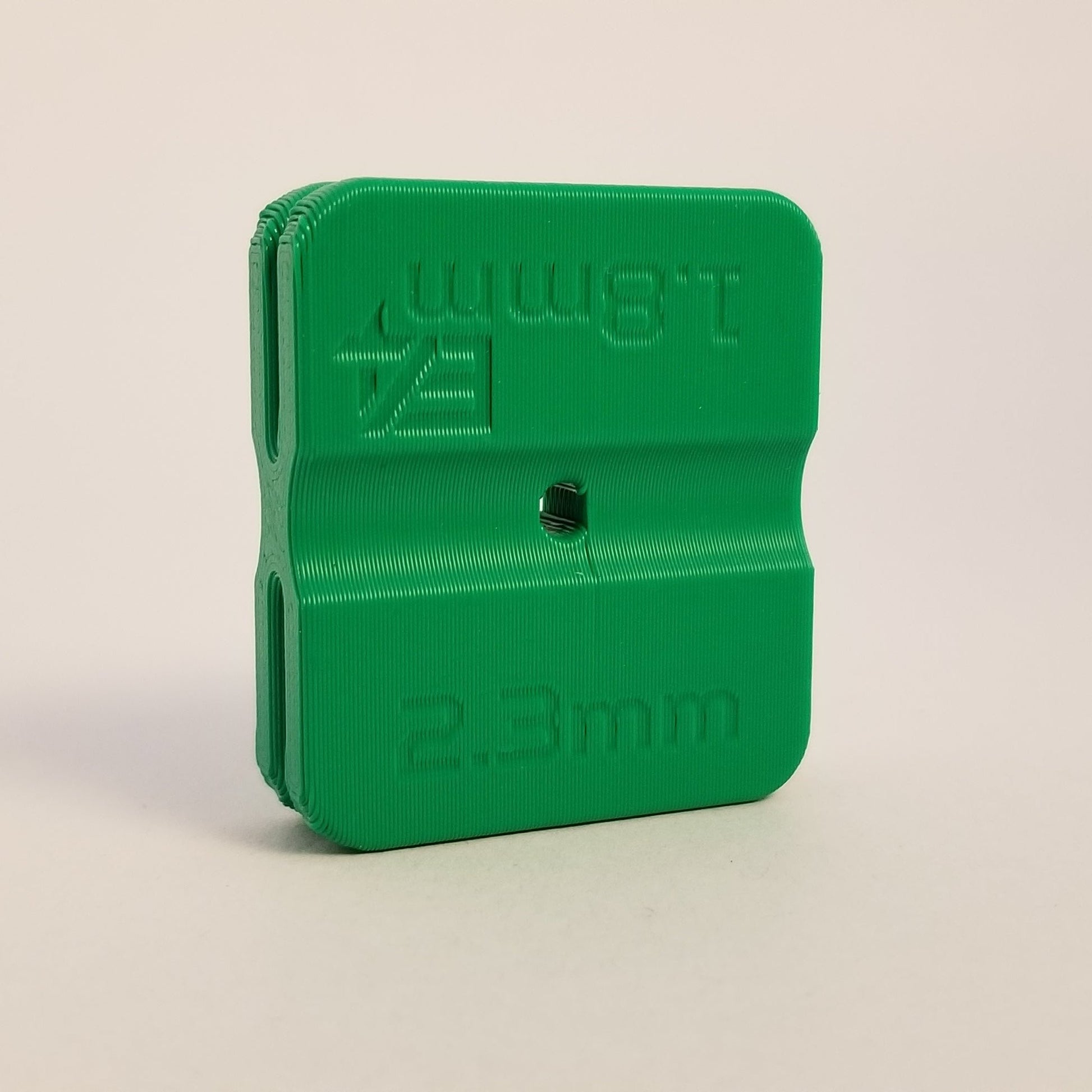

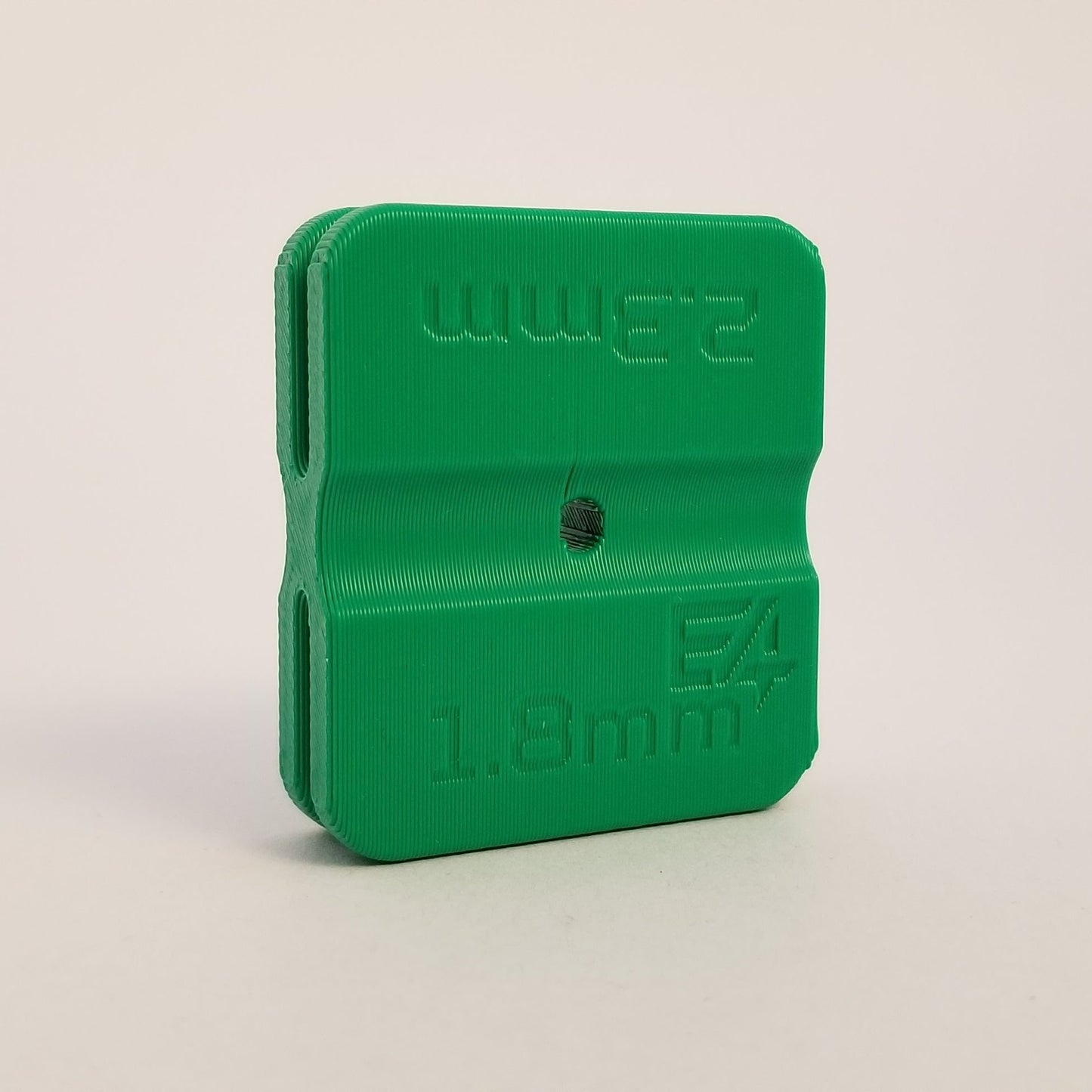

• One side of the tool is for 1.8mm discs, the other side 2.3mm discs
• E4 and RX4+ are use the same tool.

*This information is directly taken from Hope's open source tools information page
