Hope - E4 / RX4+ - Caliper Outer Pistons Stop - Bleed Block

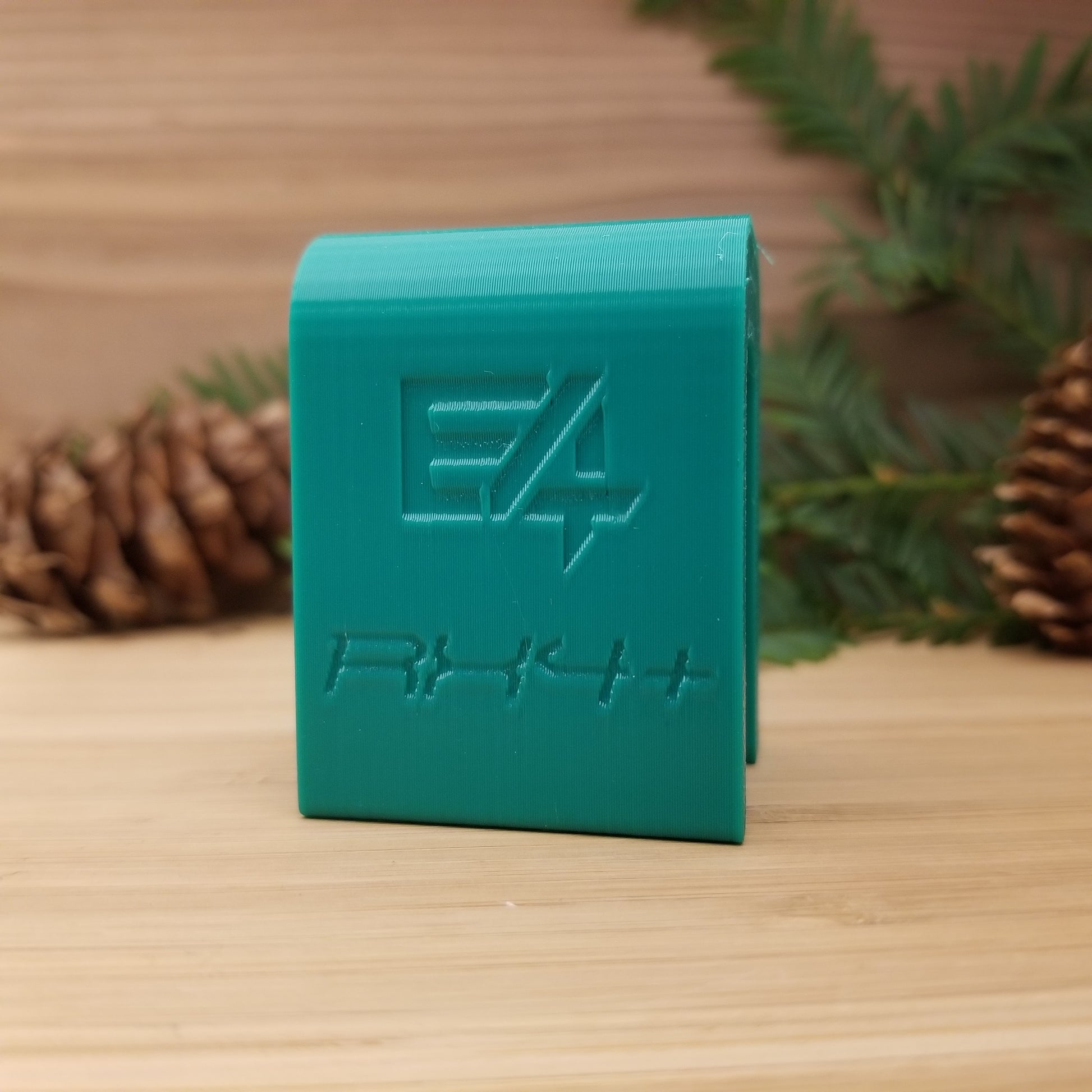

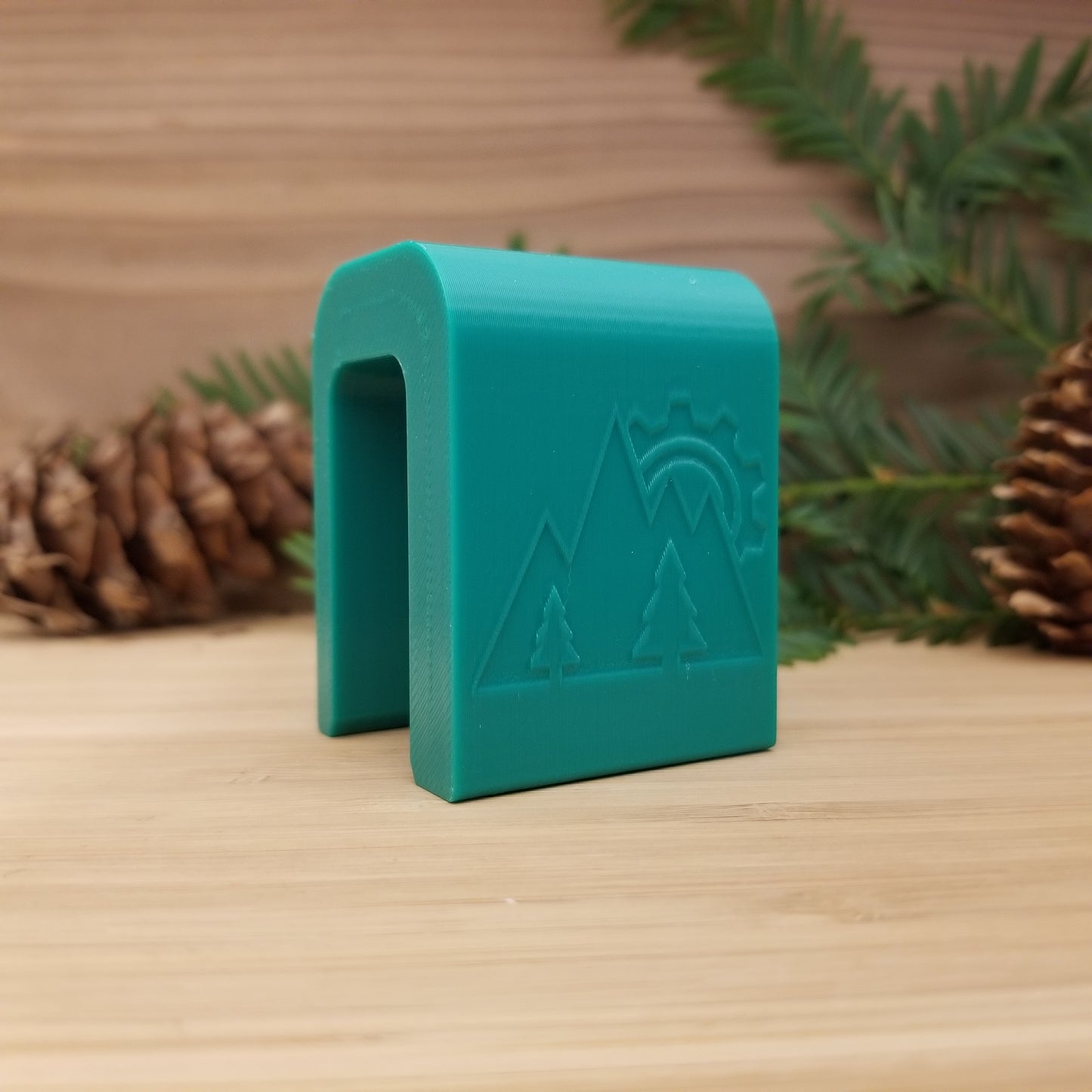

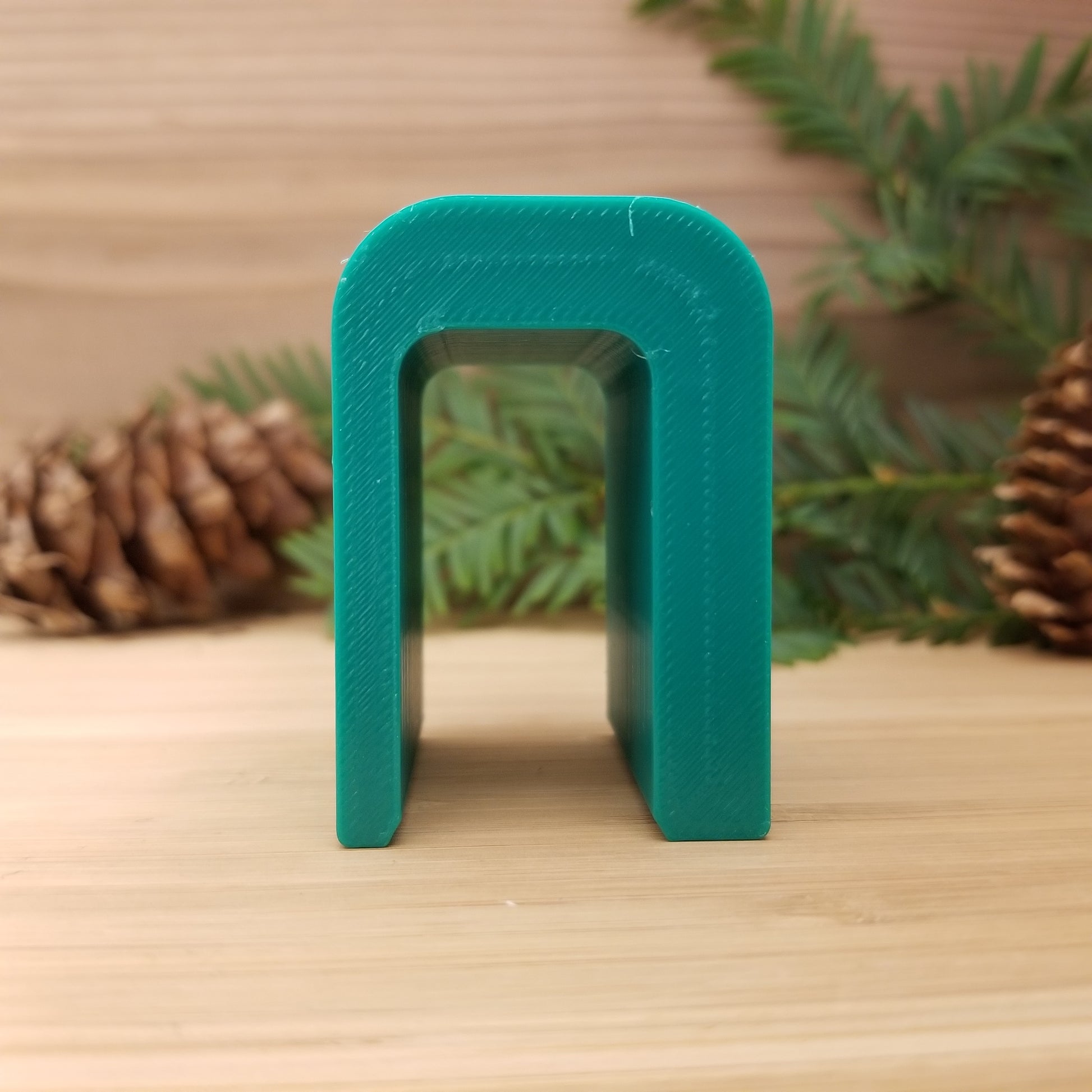

Piston Seal Service Tool

Before caliper seal replacement, allow the inboard piston(s) to come out so they are easy to remove.

Instructions:
The brake must be fully bled. Remove the pads, install the U shape tool over the front "half" of the caliper body, making sure the thinner leg of the U shape tool is in the pad location.
Pump on the master cylinder until the inner piston(s) come in contact with the tool. Remove the tool and gently remove the piston(s). The outer piston(s) will be removed once bore caps are unscrewed. The caliper will be now ready for seal replacement.

Note:

• Both inner pistons need to be pushed into their bores
• E4 and RX4+ use the same tool
• Click here for a full E4 Bleed Block Kit
• Click here for a full RX4+ Bleed Block Kit
• Official Hope Guide

1

Compatible with - Hope E4 / RX4+
