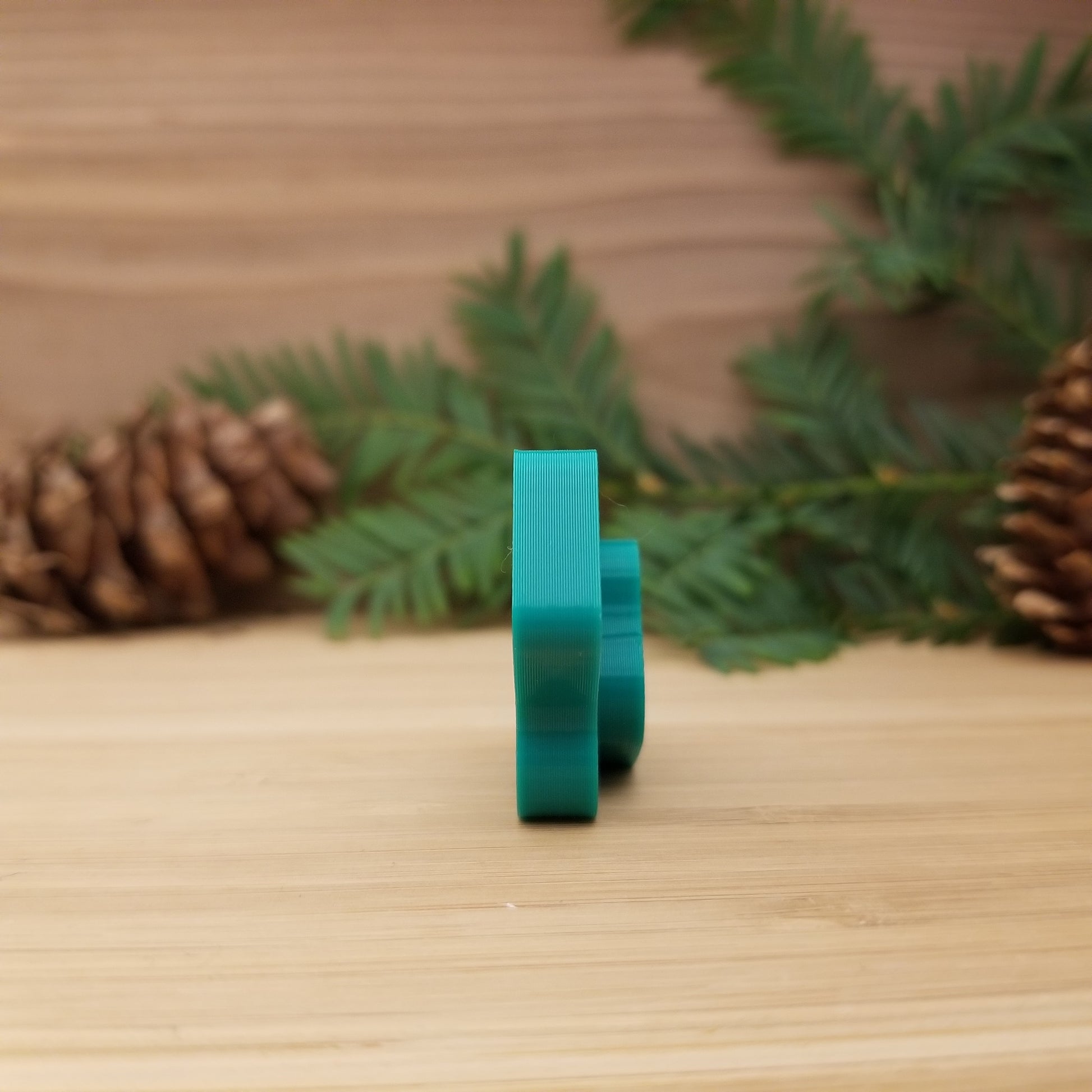

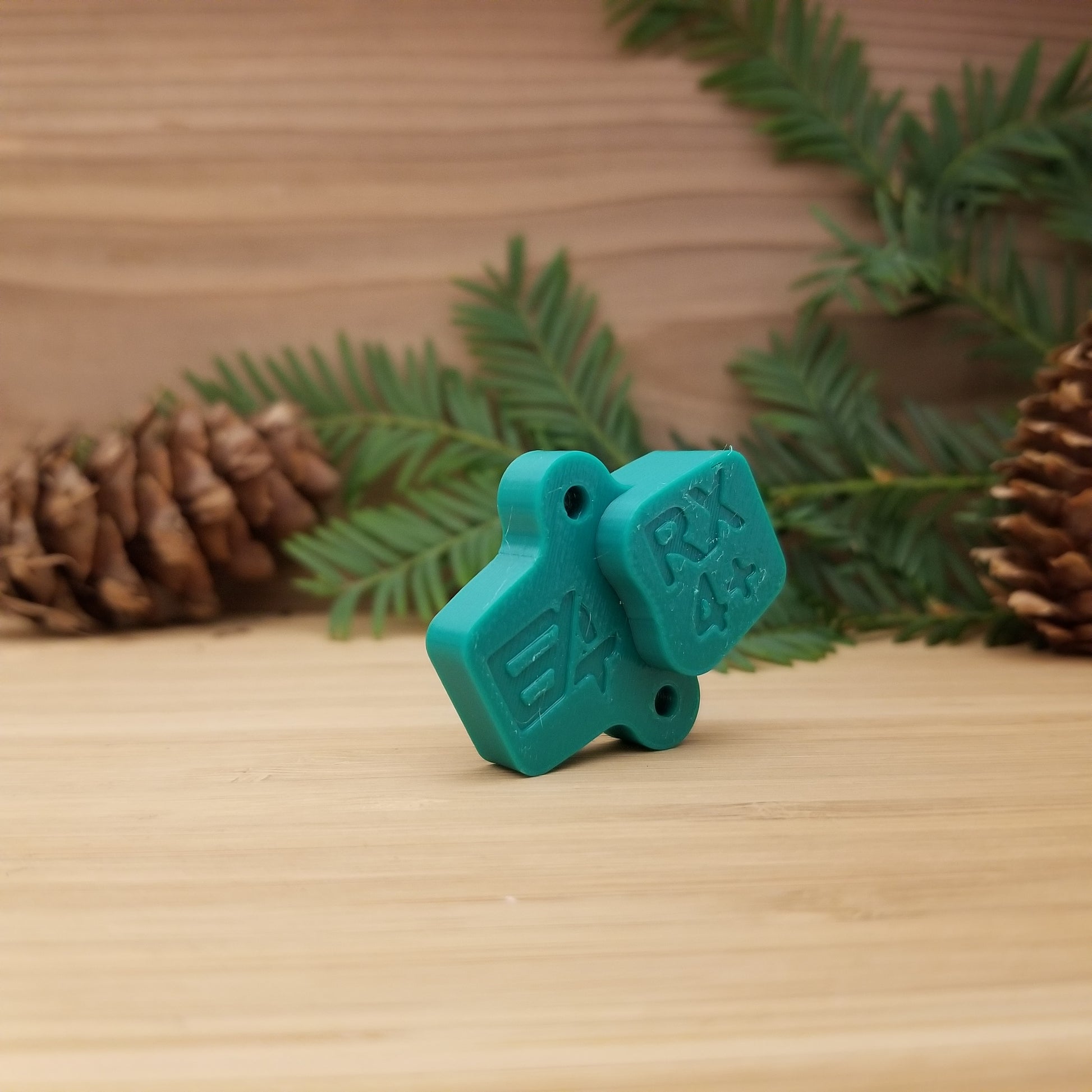

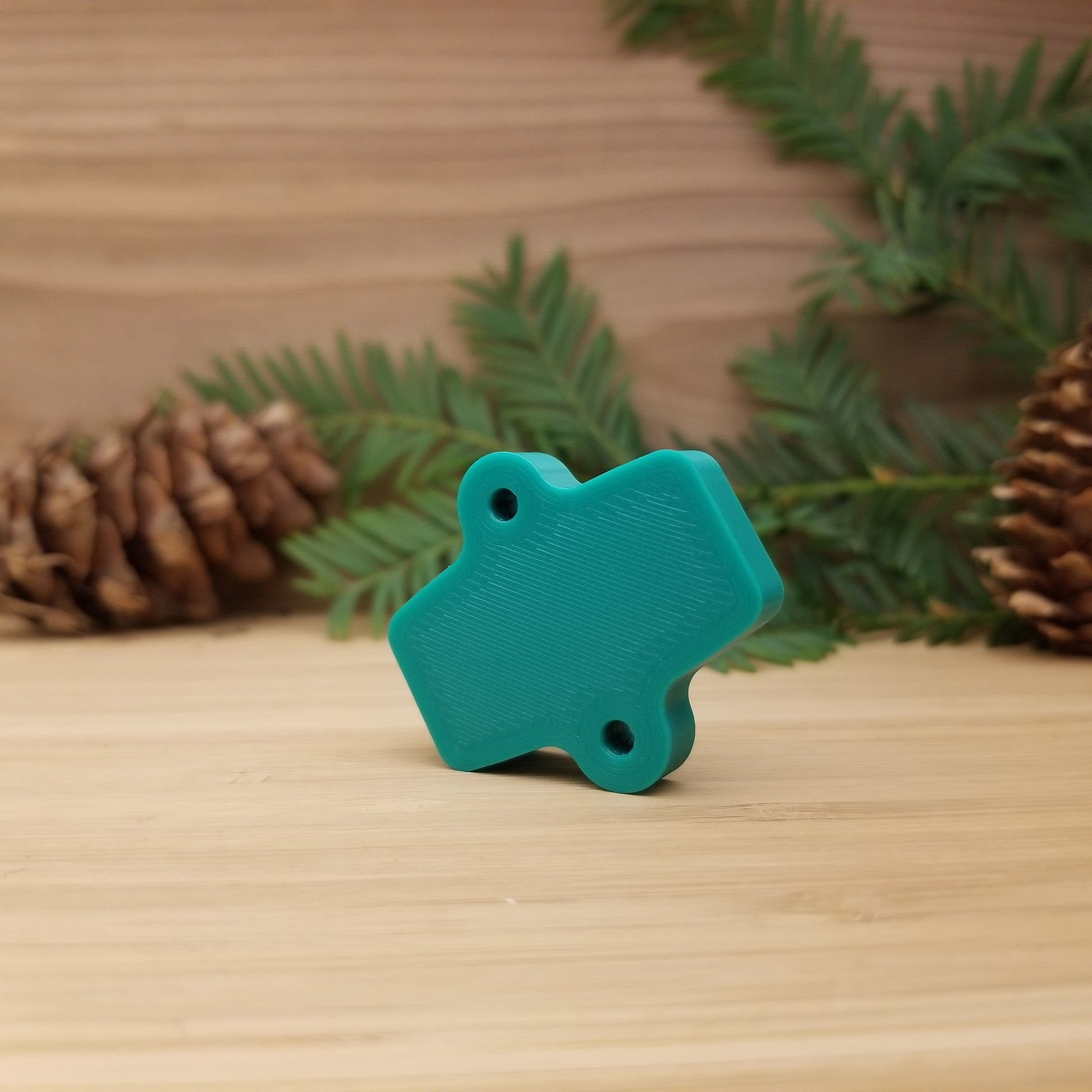

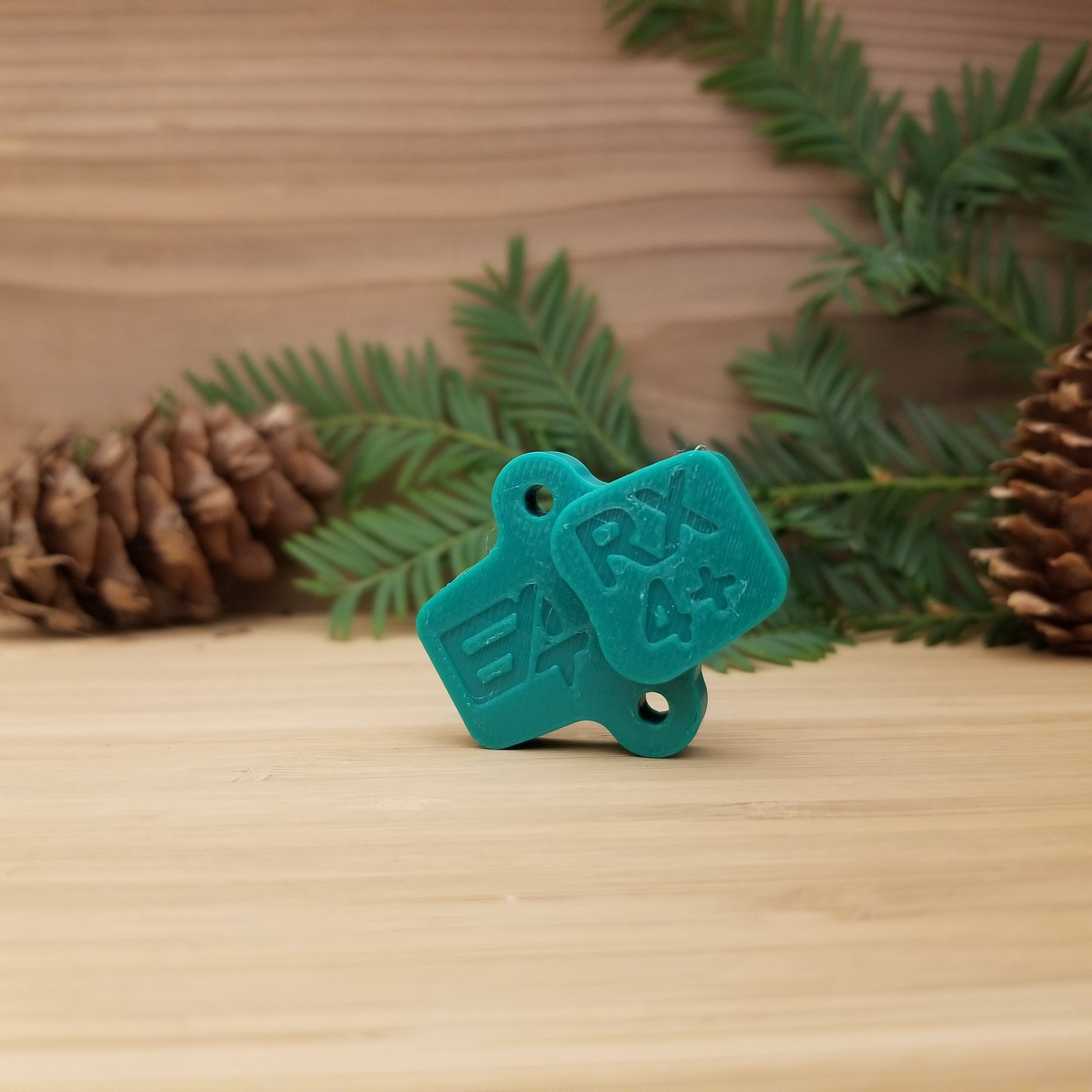

Hope - E4 / RX4+ - Caliper Single Piston Clean - Bleed Block

Piston Service Tool:

On 4 pistons calipers; allows a single piston to come out one at the time to facilitate cleaning and lubrification.

Instructions:
The brake must be fully bled. Remove the pads, present the step in front of the piston you want to come out, install the tool instead of the pads and secure with the pad pin. Pump out on the master cylinder until the piston comes in contact with the tool.

Note:

• Other pistons need to be pushed into their bores
• E4 and RX4+ use the same tool
• Click here for a full E4 Bleed Block Kit
• Click here for a full RX4+ Bleed Block Kit
• Official Hope Guide

1

Compatible with -Hope E4 / RX4+
